A check-engine light can appear without changing the way your car drives. The P0455 code means the onboard computer detected a large leak in the evaporative emission control system, commonly called the EVAP system.
A loose gas cap may be the entire problem, but cracked vapor lines, a failed valve, or a damaged canister can cause the same code. Before replacing parts, it helps to understand what the system does, which symptoms matter, and how a technician confirms the leak.
What the P0455 code means for your car
The EVAP system keeps gasoline vapors inside the fuel system instead of allowing them to escape into the air. A charcoal canister stores those vapors. Later, the engine draws them through a purge valve and burns them during normal operation.
The system also includes a fuel tank, filler neck, vapor hoses, a vent valve, and sensors that monitor pressure. The vehicle’s powertrain control module closes and opens valves during a leak test. If the pressure changes too quickly, the computer decides that the system has a large opening and stores the P0455 diagnostic trouble code.
The word “large” describes the size of the detected leak, not the repair bill or danger level. A missing cap can create a large opening. So can a disconnected hose underneath the vehicle.
A P0455 code identifies a leak in the EVAP system, but it doesn’t identify the failed part.
The code is generic across many vehicles, so the exact testing process varies by make, model, and year. AutoZone’s P0455 code reference also lists common causes such as a gas cap, EVAP hose, or canister problem.
Common causes of a large EVAP leak
Several components can trigger the same code. A technician needs to inspect the full system instead of assuming the gas cap is always at fault.
Start with the gas cap and filler area
A loose, missing, cracked, or incorrect gas cap is the simplest cause. The rubber seal can flatten or tear over time. Dirt around the filler neck can also prevent the cap from sealing correctly.
Remove the cap and inspect the seal for cuts or distortion. Then reinstall it until it reaches the vehicle manufacturer’s specified position. Some caps click, while others stop with a firm turn. Don’t force a cap that doesn’t fit correctly.
A damaged filler neck can create a similar leak. Rust, impact damage, or a split hose near the tank can leave an opening that a quick visual check misses.
Look beyond the cap
If the cap is secure, the leak may be farther along the system. Common possibilities include:
- A cracked or disconnected vapor hose, especially near the fuel tank or charcoal canister.
- A vent valve that won’t close during the leak test.
- A purge valve that doesn’t seal as commanded.
- A cracked EVAP canister or damaged plastic vapor line.
- A fuel tank pressure sensor or wiring fault that sends incorrect readings.
Heat, road salt, age, and vibration can damage EVAP parts. In Wisconsin, corrosion deserves attention because salt-covered components and fittings can deteriorate during repeated winter driving.
A P0455 code can appear alone, but other codes may provide useful clues. Codes related to purge flow, vent control, or pressure sensor performance can help narrow the search.
P0455 symptoms and driving safety
Many vehicles show only a check-engine light. The engine may start, idle, and accelerate normally because the EVAP system handles fuel vapor rather than the main fuel and ignition functions.
Some drivers notice a gasoline odor, especially after filling the tank. A faulty purge valve can also contribute to hard starting after refueling, rough idle, or stalling. Those symptoms point to a problem that may involve more than a simple leak in a hose.
An EVAP fault can prevent the vehicle from completing its emissions self-test. That may cause an emissions inspection failure even when the car feels normal. Clearing the light before an inspection won’t solve the issue because the system must complete its monitor again.
If you smell strong gasoline, see liquid fuel, or notice stalling and rough running, stop driving and move the vehicle away from ignition sources.
When there is no fuel smell, no visible leak, and no drivability problem, a short trip to a repair facility is often reasonable. Still, schedule diagnosis soon. A loose cap may be harmless to drive with, while a damaged line near the tank needs a closer inspection.
How professionals diagnose and fix a P0455 leak
A proper diagnosis usually follows a clear sequence:

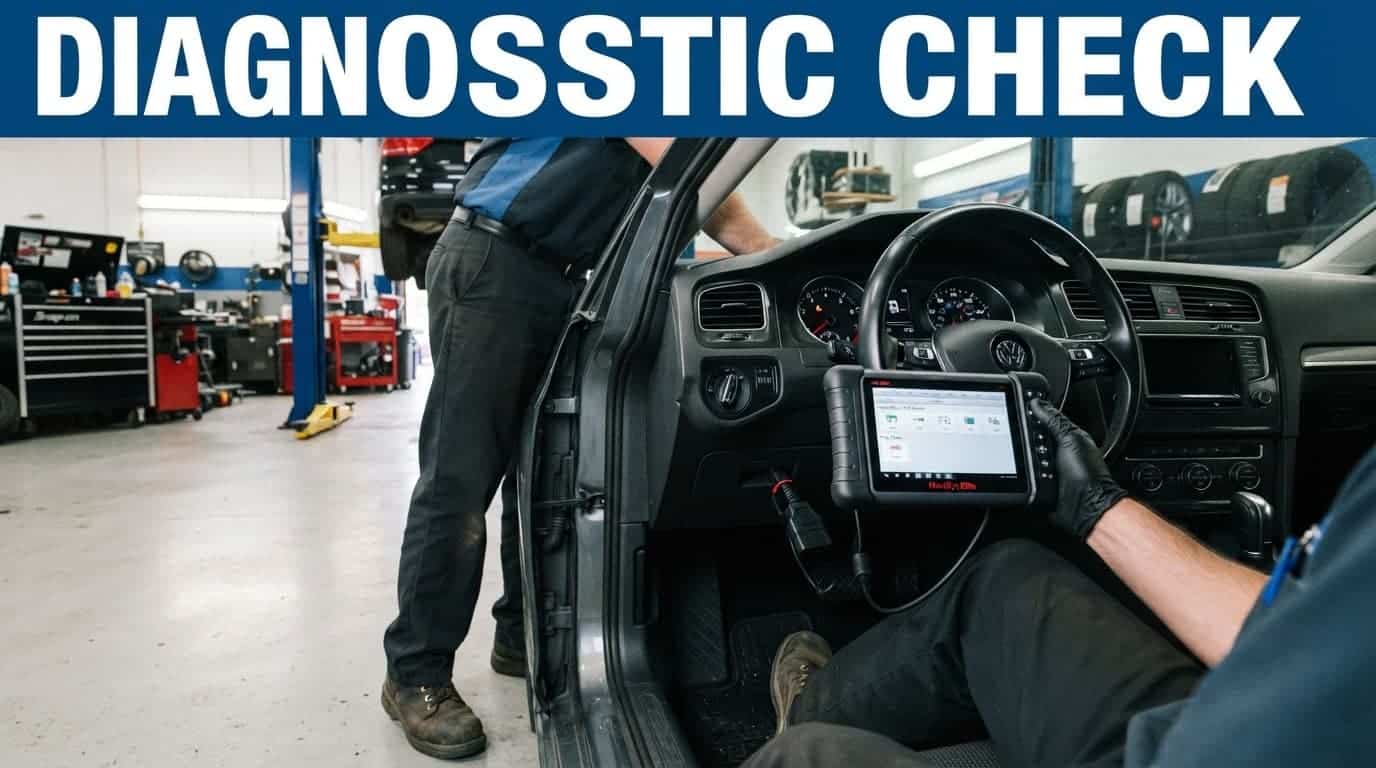

- Scan the vehicle and review stored data. The technician checks current and pending codes, freeze-frame information, and any related EVAP faults. This can show when the computer detected the problem.
- Inspect the cap, filler neck, hoses, valves, and canister. The technician looks for disconnected lines, broken clips, corrosion, cracks, and signs of fuel vapor leakage. The inspection may require lifting the vehicle because several components sit near the tank.
- Test the valves and pressure sensor. A scan tool can command the purge and vent valves. The technician then checks whether each valve opens, closes, and holds pressure correctly. Electrical tests can identify a failed connector, damaged wire, or inaccurate sensor.
- Perform a smoke test. A smoke machine fills the sealed EVAP system with a small amount of visible smoke. Smoke escaping from a hose, fitting, canister, filler neck, or valve reveals the leak’s location.
A smoke test is often the quickest way to find a large leak that can’t be seen from above. However, technicians still need to test the system’s controls and sensors because an electrical fault can imitate a mechanical leak.
The repair depends on the failed component. A new gas cap may solve the problem in minutes. A vapor hose or vent valve may take more time, particularly when road corrosion has seized a fitting. A canister, filler neck, or tank-mounted part may require additional labor and access.
After the repair, the technician clears the code and verifies the system. The EVAP monitor may need several normal drive cycles before the computer confirms that the leak is gone. A code that returns after clearing needs more diagnosis, not repeated resets.
When local repair or towing makes sense
People searching for auto repair Lodi WI need a shop that can perform more than a basic code scan. EVAP diagnosis requires visual inspection, pressure testing, and a smoke machine when the leak isn’t obvious.
Someone typing mechanic near Lodi WI may find several options, but ask whether the shop diagnoses the cause before recommending parts. A technician who replaces the gas cap without checking the rest of the system may miss a cracked line or failed valve.
Lodi Shell is a family-owned business that has served the community since 1990. Its auto repair shop background includes routine maintenance, mechanical repairs, and towing support. The shop’s local auto repair services can also help with broader inspection and maintenance needs.
Routine car maintenance Lodi Wisconsin drivers schedule can reduce some EVAP problems. Replacing a damaged cap, addressing rust early, and reporting fuel odors can keep a minor fault from becoming a larger repair.
If the vehicle won’t start, has visible fuel damage, or isn’t safe to drive, towing is the better choice. Drivers searching for 24 hour towing Lodi Wisconsin can contact Lodi Shell for around-the-clock roadside help. A towing service Columbia County WI drivers can reach quickly is useful when a breakdown occurs after business hours or away from home.
If repair costs no longer make sense for an older vehicle, you can also review used cars for sale in Lodi. A pre-purchase inspection can help identify warning lights and pending emissions problems before you buy.
When you need a local auto repair shop Wisconsin drivers can return to, choose a team that explains the diagnosis clearly and gives you a practical repair plan. To ask about service or towing, Contact Us Today.
A large EVAP leak deserves a real diagnosis
The P0455 code often starts with a loose gas cap, but the code alone can’t prove that is the cause. A cracked hose, failed valve, damaged canister, or sensor issue can produce the same warning.
Check the cap first, then arrange a proper inspection if the light remains on. If gasoline is visible or the odor is strong, don’t drive the vehicle. A clear diagnosis protects your emissions system, your wallet, and your safety.
