A bad temperature reading can make a healthy engine look overheated, or hide a cooling problem until it gets expensive. A careful coolant temperature sensor test helps you separate a sensor fault from low coolant, wiring trouble, a thermostat issue, or a weak cooling fan.
You don’t need to guess based on the dashboard gauge alone. With a scan tool, a digital multimeter, and the correct service information, you can check whether the engine coolant temperature sensor is reporting believable data.
What the coolant temperature sensor does
The engine coolant temperature sensor, often called the ECT sensor, sends coolant temperature information to the powertrain control module, or PCM. The PCM uses that data to adjust fuel delivery, ignition timing, cooling-fan operation, and warm-up strategy.
Because the sensor affects several systems, bad data can create confusing symptoms. You might notice hard cold starts, rough idle, poor fuel mileage, a check engine light, weak cabin heat, or a temperature gauge that behaves strangely.
The sensor uses a thermistor
Most ECT sensors use a thermistor, an electrical component that changes resistance as temperature changes. The sensor’s sensing element sits in contact with coolant, so its resistance should change predictably as the engine warms.
As JAK Electronics explains about ECT sensors, the thermistor responds directly to coolant temperature. On many common sensor designs, resistance drops as temperature rises.
One symptom doesn’t prove a failed sensor
A temperature-related fault can come from more than one source. Low coolant, trapped air, corroded wiring, a stuck thermostat, a failing fan relay, or a weak water pump can all affect engine temperature or the reading shown on the dash.
For example, a sensor reporting an engine as colder than it is may contribute to a P0128 code. However, P0128 often relates to slow warm-up and can also point to a thermostat stuck open. Diagnose the system before buying parts.

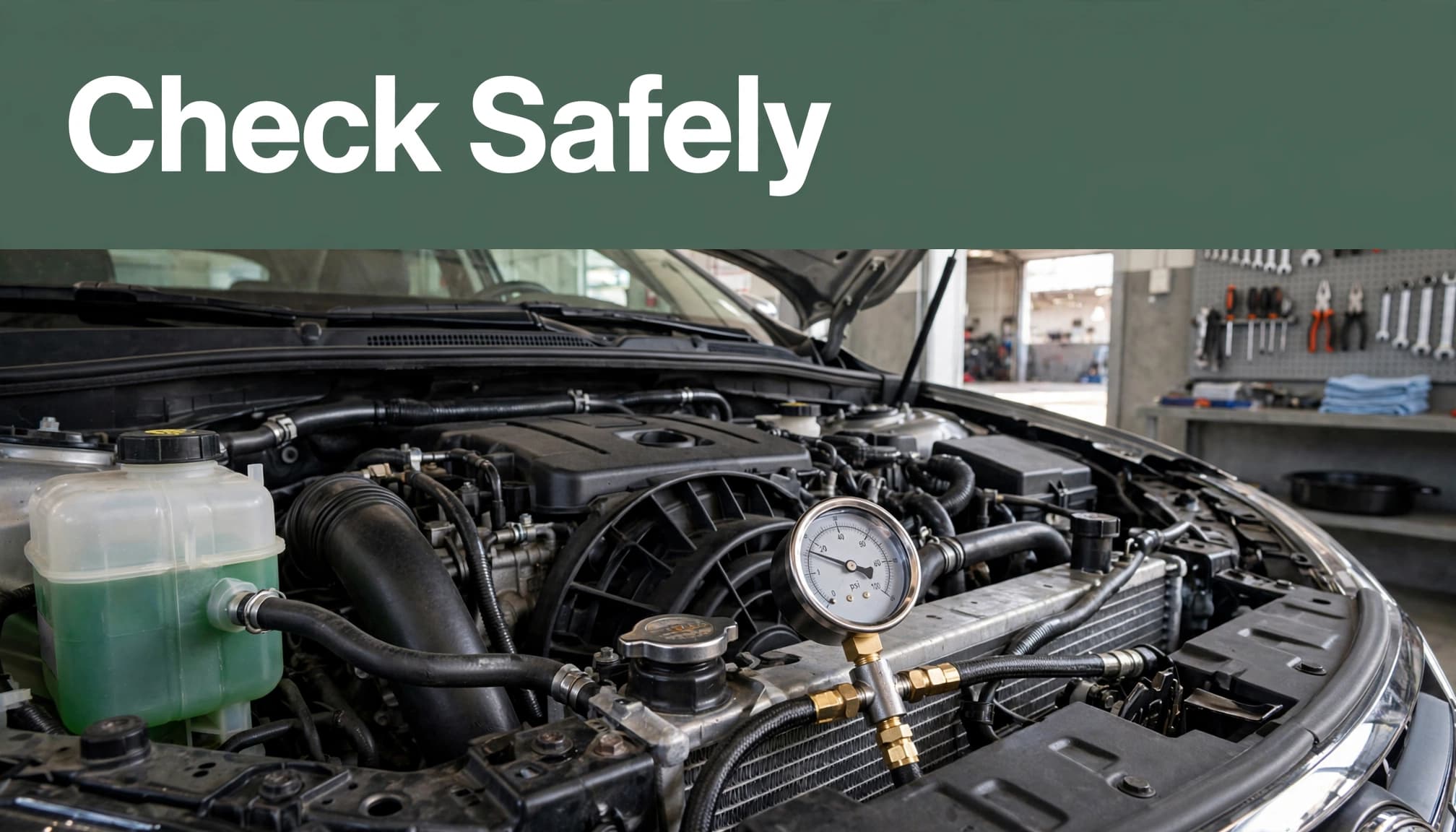

Stay safe before testing
Coolant systems operate under pressure when hot. Never remove a radiator cap or reservoir cap from a hot engine. Hot coolant can spray out without warning and cause serious burns.
Let the vehicle sit until the engine and upper radiator hose are completely cool. Then check the coolant level according to the owner’s manual, and look for wet areas, dried coolant residue, damaged hoses, or a loose sensor connector.
Stop driving if the engine is overheating
A warning light, steam, a strong sweet coolant smell, coolant loss, or severe power loss means you should pull over safely and shut the engine off. Continuing to drive can turn a cooling-system repair into engine damage.
A sensor can make the gauge lie, but it cannot make an overheated engine safe to drive.
If the vehicle can’t hold a normal temperature, arrange 24-hour towing in Lodi instead of attempting repeated short trips. A 24 hour towing Lodi Wisconsin call is the safer option when overheating happens after business hours.
Don’t test resistance on a powered circuit
Resistance testing requires the circuit to be unpowered. Turn the ignition off before disconnecting the sensor, and do not set a multimeter to ohms while the connector has voltage on it.
For voltage checks, use the DC-volts setting and follow the vehicle’s wiring diagram. Probe the harness only when you know which terminal is the signal, ground, or reference circuit.
Gather the right tools and information
A digital multimeter is the basic tool for checking sensor resistance and circuit voltage. An OBD2 scan tool adds useful live data, because it shows the temperature the PCM believes the engine has reached.
You will also need the vehicle’s year, make, model, engine size, and factory service specifications. Sensor designs, resistance charts, connector pinouts, and expected voltage values vary by vehicle.
A basic setup includes:
- A digital multimeter with resistance and DC-voltage settings.
- An OBD2 scanner that can display coolant temperature live data.
- The vehicle-specific repair manual or reliable service database.
- A flashlight and a small mirror for inspecting the connector and wiring.
- An infrared thermometer, if available, to compare scan data with engine temperature near the sensor housing.
General charts help establish a pattern, but they don’t replace factory specifications. One ECT resistance reference lists roughly 2,000 to 3,000 ohms at 20 degrees C. Use it only as a broad comparison.
How to perform a coolant temperature sensor test
Start with the engine fully cold, preferably after it has sat for several hours. This gives you a stable baseline and makes it easier to spot an implausible reading.
Check the cold reading with live data
Plug in the scan tool and view the coolant temperature PID before starting the engine. The displayed coolant temperature should be reasonably close to outdoor temperature after a long cool-down period.
Compare it with the intake-air temperature PID if your scanner displays both. A large mismatch can point to an inaccurate ECT sensor, a connector problem, or damaged wiring.
Start the engine and watch the coolant temperature rise. During a normal warm-up, the value should climb steadily toward the vehicle’s specified operating range. A reading that stays unusually low can fit a stuck-open thermostat or inaccurate sensor data. Sudden jumps or drops deserve closer inspection.
You can use OBD2 live data for diagnostics to see patterns that a dashboard gauge may hide.
Measure sensor resistance with a multimeter
With the engine cool and ignition off, locate the ECT sensor using the service manual. It may be mounted in a coolant passage, thermostat housing, cylinder head, intake manifold, or another engine-specific location.
Disconnect the electrical connector. Inspect both sides for bent terminals, green corrosion, coolant contamination, broken locking tabs, or insulation damage near the plug.
Set the multimeter to ohms. Place one probe on each sensor terminal, then record the reading. Compare it with the resistance specification for the current coolant temperature.
Compare readings at more than one temperature
A useful coolant temperature sensor test looks for a changing pattern, not one magic number. Published general references vary slightly. Focusensing lists about 2,200 to 3,000 ohms at 20 degrees C and roughly 250 to 350 ohms at 80 degrees C in its coolant sensor resistance guide.
Your vehicle may use different values. The important point is that resistance should move smoothly in the direction stated by the manufacturer as coolant temperature rises.
An open circuit, a short circuit, or a reading far outside the manual’s range supports a failed sensor. Still, inspect the connector and wiring before condemning it.
Test the connector and wiring too
A sensor can test normally on the bench while the vehicle still receives bad temperature information. Vibration, corrosion, heat, and previous repairs can damage the harness near the connector.
Look for voltage and ground problems
Reconnect the battery if you disconnected it for testing. With the key on, use the factory wiring diagram to identify the correct connector terminals. Check for the reference voltage and ground path described in the manual.
A missing reference voltage, poor ground, or unstable signal can cause false temperature readings. Do not force probes into terminals or spread the connector contacts. Back-probe carefully with the correct adapters when possible.
If the harness shows damage, repair that fault before replacing the sensor. A new ECT sensor cannot correct a broken wire.
Compare sensor data with actual conditions
An infrared thermometer can provide a second comparison point near the sensor’s mounting area. It measures surface temperature, not coolant temperature inside the engine, so treat it as supporting evidence.
Also check the cooling system itself. Low coolant can leave air around the sensor and create erratic readings. A leak near a hose, radiator, water pump, thermostat housing, or reservoir needs repair before refilling and retesting.
A local auto repair shop Wisconsin drivers trust should test the full system when scan data, resistance, and cooling behavior don’t agree.
Know when the problem is not the sensor
A sensor is only one part of the cooling system. When temperature readings seem wrong, look for the symptom pattern before choosing a repair.
Slow warm-up often points elsewhere
If the engine takes too long to warm up, the temperature stays low, and cabin heat remains weak, a stuck-open thermostat is a common cause. The PCM may store P0128 because the engine did not reach its expected temperature within the expected time.
Low coolant can also give the sensor inaccurate information, especially if air reaches the sensing tip. Check for leaks and proper coolant level before replacing electrical parts.
Routine car maintenance Lodi Wisconsin drivers schedule, including coolant inspections and hose checks, can catch small leaks before they disrupt warm-up.
A rising gauge needs immediate attention
A gauge that climbs in traffic, steam under the hood, or coolant boiling from the reservoir points to a cooling problem that needs prompt attention. The cause could be a stuck-closed thermostat, failed cooling fan, weak water pump, restricted radiator, low coolant, or a false sensor signal.
A towing service Columbia County WI can move a disabled vehicle without risking more heat damage. If the car is safe to move but keeps showing warning lights, a mechanic near Lodi WI can compare live data, system pressure, coolant flow, and wiring before parts are installed.
When to call for professional diagnosis
Bring the vehicle in when the ECT reading jumps, the check engine light returns, the connector is damaged, or the resistance result does not match factory specifications. Intermittent faults often need graphing data, voltage-drop testing, or professional equipment.
For drivers seeking auto repair Lodi WI, a full cooling-system diagnosis is more useful than replacing a sensor based on a single code. Lodi Shell can inspect coolant level, leaks, fan operation, thermostat behavior, sensor data, and the wiring that connects those systems.
If you are shopping for used cars for sale Lodi WI, ask for a pre-purchase scan and cooling-system inspection. Pending codes, incomplete readiness monitors, coolant residue, or strange warm-up behavior deserve answers before you buy.
Key takeaways
- Begin with a cold-engine scan. Coolant temperature should make sense compared with ambient conditions.
- Measure resistance only with the sensor circuit unpowered, then compare it with the factory chart.
- Inspect the connector, wiring, coolant level, and thermostat before replacing the ECT sensor.
- Stop driving when the engine overheats, produces steam, or loses coolant.
- Confirming the cause protects you from paying for a part that wasn’t the problem.
FAQ
Can I test an ECT sensor without a multimeter?
Yes, an OBD2 scan tool can show whether the coolant temperature PID begins near ambient temperature and rises smoothly during warm-up. However, scan data alone does not rule out a wiring issue or cooling-system problem.
A multimeter resistance test and connector inspection add useful proof. When the results conflict, professional diagnostics are the sensible next step.
Can a bad coolant sensor cause a rough idle?
It can. Incorrect coolant temperature information may cause the PCM to use the wrong fuel strategy, especially during warm-up. However, vacuum leaks, ignition faults, fuel delivery issues, and airflow sensor problems can produce similar symptoms.
For more context, review these coolant temperature sensor and rough idle symptoms. Avoid replacing the sensor until testing supports the repair.
Keep cooling problems from becoming engine problems
The best coolant temperature sensor test combines live data, resistance checks, wiring inspection, and a close look at coolant condition. A believable reading must also match what the engine is doing in real conditions.
