A car that loses dash power, starts only when you jiggle the key, or won’t crank can leave you guessing. Learning how to test ignition switch circuits with a multimeter helps you separate a switch problem from a weak battery, blown fuse, starter issue, or damaged wiring.
The key is to work from your vehicle’s wiring diagram, not from generic terminal colors or online pinouts. A careful test can save time, while an incorrect probe placement can create a short or damage a connector.
Key Takeaways
An ignition switch routes power to accessory, ignition, and starting circuits as you turn the key. It does not work alone, so a failed fuse, relay, battery connection, starter circuit, neutral-safety switch, or anti-theft system can create similar symptoms.
- Use a digital multimeter with the black lead in COM and the red lead in the V-ohms port.
- Check voltage only on an energized circuit. Disconnect power before checking continuity or resistance.
- Compare every reading with the vehicle-specific wiring diagram and service information.
- Back-probe from the wire side when the connector remains connected, and avoid forcing probe tips into terminal cavities.
- Stop if you find melted plastic, green corrosion, a burning smell, loose terminals, or repeated fuse failures.
A reliable diagnosis starts with the whole electrical system, not a replacement ignition switch.
Recognize Symptoms Before You Test
The ignition switch is often blamed because it sits behind the key. However, the symptom pattern provides better clues than the key itself.
Power disappears in one key position
A worn switch may power accessories in ACC but fail to supply an ignition circuit in RUN. You might notice a dark instrument panel, a blower motor that cuts out, or warning lights that appear only when the key is held in a certain position.
Intermittent behavior matters. If gently moving the key makes electrical power return, the switch or its connector deserves attention. Still, inspect the battery terminals and related fuses first.
Cranking and shifting issues can have other causes
A no-crank condition can come from the starter relay, park/neutral switch, clutch switch, battery, or cable connections. On many automatic vehicles, a faulty brake-light switch can also affect a shift interlock.
If the brake lights do not illuminate when you press the pedal, arrange a repair soon. Likewise, a key that sticks, turns too freely, or won’t return from START may point to a worn lock cylinder rather than the electrical switch.
Prepare for a Safe Ignition-Switch Test
Park on level ground, set the parking brake, and place the transmission in Park or Neutral. Keep jewelry, loose clothing, and metal tools away from battery terminals and exposed wiring.
Gather the right tools and information
Use a digital multimeter that measures DC voltage, resistance, and continuity. You also need the vehicle’s wiring diagram, which identifies the switch connector, wire colors, terminal functions, and expected readings.
Set the meter before reaching under the dash. Plug the black lead into COM and the red lead into the V or V-ohms jack. Never leave the red lead in an amp port for a voltage test, since that can create a direct short.
OSHA’s workplace electrical safety resources reinforce a basic rule that applies in any garage: treat exposed electrical connections with care and use the correct equipment.
Access the connector without damaging it
Remove trim panels only as far as needed to reach the ignition-switch connector. Some steering-column areas contain airbag wiring, so follow the manufacturer’s procedure before disconnecting or probing anything near those components.
When testing a connected harness, back-probe from the wire side with a thin probe. Do not widen terminal cavities or jam a thick probe beside a terminal. A loose connection can later create an intermittent fault that wasn’t there before.
Never measure resistance or continuity on a powered ignition circuit. The meter’s resistance function supplies its own small test current.
Identify the Ignition-Switch Circuits
The ignition cylinder and the electrical ignition switch are separate on many vehicles. Turning the key moves the cylinder, which operates the switch. The wiring diagram tells you what the switch should send out in each key position.
Find the battery-feed terminal first
Many systems have one battery-feed circuit that remains live with the key off. With the meter set to DC volts, connect the black lead to a known-good chassis or battery ground. Then test the identified feed terminal.
A 12-volt vehicle should show battery voltage at that terminal if the feed, fuse, and connection are healthy. Do not assume every wire near the switch should have voltage. Some circuits wake up only in ACC, RUN, or START.
Map ACC, RUN, and START outputs
Accessory circuits often operate in ACC and RUN. Ignition outputs commonly power engine controls and dash circuits in RUN. The start output normally receives power only while the key is held in START.
Write down the expected switch positions before testing. This simple step prevents confusion when a circuit appears dead in ACC but works correctly in RUN. A vehicle-specific diagram is more trustworthy than a universal ignition-switch terminal chart.
How to Test Ignition Switch Voltage
Voltage testing checks whether the switch sends power through the correct output wire while it is connected and operating. Keep the engine off unless the service procedure calls for it.
Confirm the meter and ground connection

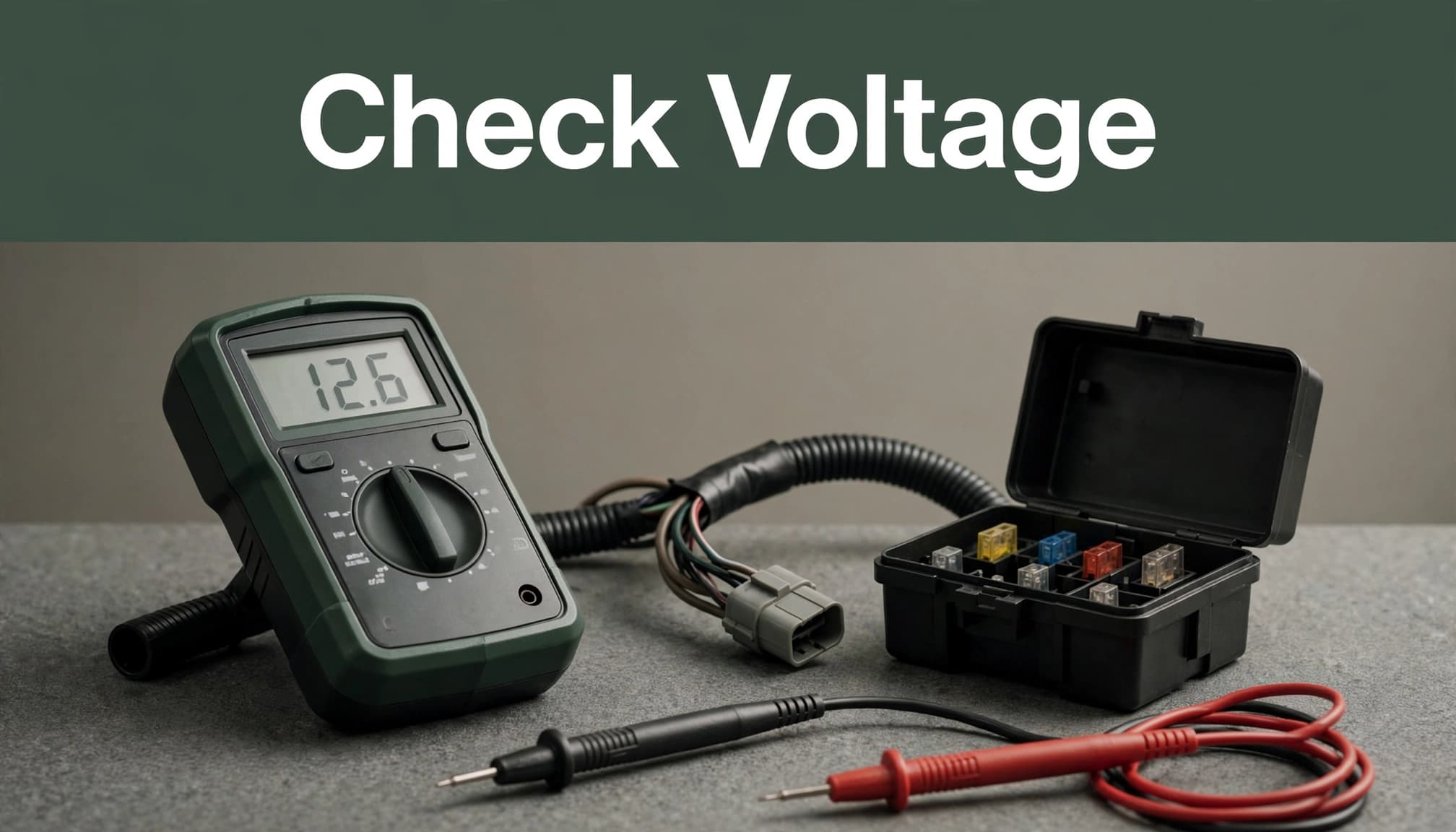

Set the multimeter to DC voltage, using a range above 15 volts if it is not auto-ranging. Touch the black lead to the battery negative post or a verified clean ground point. Then verify your setup by checking battery voltage.
A poor ground can make a healthy ignition circuit look faulty. If the meter reading jumps around, clean the test point or move the black probe directly to battery negative before drawing conclusions.
Check each output in its required position
Back-probe the identified accessory output. Turn the key to ACC, then RUN, and compare the voltage at each position with the wiring diagram. Repeat this process for the ignition output and, if safely accessible, the start output.
A working circuit should receive the specified voltage only in its assigned key position. Zero voltage where power should appear may indicate a failed switch, but it can also point to an upstream fuse, damaged connector, or broken wire.
If a reading changes when you wiggle the key or connector, look closely for heat damage, corrosion, or loose terminals. A switch that passes an unloaded voltage check may still fail under operating load, so symptoms and circuit condition both matter.
Test Continuity With Power Disconnected
Continuity testing checks the switch’s internal paths without battery power. It is useful when the switch can be unplugged and the service information lists which terminals should connect in ACC, RUN, and START.
Disconnect power before using ohms
Turn the ignition off and disconnect the battery as directed by the vehicle manufacturer. Unplug the ignition-switch connector, then set the meter to continuity or resistance. Touch the probes together first to confirm the meter beeps or reads close to zero ohms.
Use the wiring diagram to identify the input and output terminals. Never guess by probe size, wire location, or a connector’s shape.
Compare the switch’s changing paths
Place one probe on the switch’s power-input terminal and the other on the expected output. Turn the key through each position and record whether continuity appears or disappears as specified.
A switch that stays open when it should close, remains connected in the wrong position, or responds only when the key is moved may be faulty. An unstable reading can also come from worn contacts inside the switch.
Don’t treat one reading as proof. Recheck the test with steady probe contact, then inspect the connector and wiring before ordering parts.
Rule Out Related Electrical Problems
An ignition switch can look guilty when the real issue is elsewhere. Checking the related circuits reduces unnecessary parts replacement.
Inspect fuses, relays, and battery connections
Check relevant fuses with the correct circuit active. A powered, good fuse generally shows battery voltage at both test pads when measured to ground. Voltage on one side and near zero on the other points to an open fuse.
Battery terminals should be clean and tight. Dim lights, clicking during a start attempt, and a clock that resets can indicate low battery voltage or a poor connection. For broader electrical concerns, review Lodi Shell’s OBD2 live-data diagnostic guidance, while remembering that a scan complements hands-on circuit testing.
Consider mechanical and security-system faults
A damaged ignition cylinder can make the key bind or keep it from returning properly. Anti-theft systems, starter interlocks, and park/neutral switches can also block cranking even when the ignition switch supplies the correct signal.
For drivers shopping for used cars for sale in Lodi, WI, a pre-purchase inspection should include key operation, battery condition, warning lights, and a road test. An OBD2 scan can reveal pending codes, but it cannot replace a complete inspection.
When to Call a Professional or Tow the Vehicle
Stop home testing if you smell burning plastic, see melted insulation, find a hot connector, or cannot identify the correct terminals. Repeatedly turning the key or replacing fuses can make an electrical fault worse.
Get a complete electrical diagnosis
A mechanic near Lodi, WI can test the battery, charging system, fuses, grounds, starter circuit, interlock switches, and ignition wiring as one system. Lodi Shell provides automotive electrical repair in Lodi for faults that need more than a basic meter check.
Regular inspections also catch loose terminals and worn components before they become a no-start situation. Dependable car maintenance services in Lodi can help keep small electrical concerns from becoming roadside problems.
Choose towing when the car isn’t safe to drive
Do not drive with power cutting out, a key that will not release safely, active overheating, smoke, or a steering-column electrical smell. A 24 hour towing Lodi Wisconsin option is safer than attempting a roadside diagnosis in traffic or a tight parking area.
For a towing service in Columbia County, WI, use Lodi Shell’s 24-hour towing in Lodi. If you need repair help, towing, or advice on a no-start vehicle, Contact Us Today.
FAQ
Can I test an ignition switch without removing it?
Yes, voltage testing usually happens with the switch connected. Back-probe the correct wire from the harness side and compare voltage in ACC, RUN, and START with your vehicle’s wiring diagram. Avoid forcing probes into the connector.
What does a bad ignition switch reading look like?
There is no universal bad reading. The key clue is a missing, incorrect, or unstable voltage at an output that should be powered in a given key position. A continuity path that fails to change as specified also points toward a defective switch.
Why does my car start only when I move the key?
The switch contacts, ignition cylinder, connector, or wiring may be worn. Battery and starter-circuit issues can also cause intermittent starts. A local auto repair shop in Wisconsin can identify the actual failure before parts are replaced.
Final Thoughts
A multimeter can help you test ignition switch circuits with confidence when you use the correct diagram, meter setting, and test point. Check voltage with power applied, use continuity only with power disconnected, and look beyond the switch when the symptoms don’t match the readings.
A careful diagnosis protects the vehicle’s wiring and helps you choose the right repair, rather than replacing parts on a guess.
